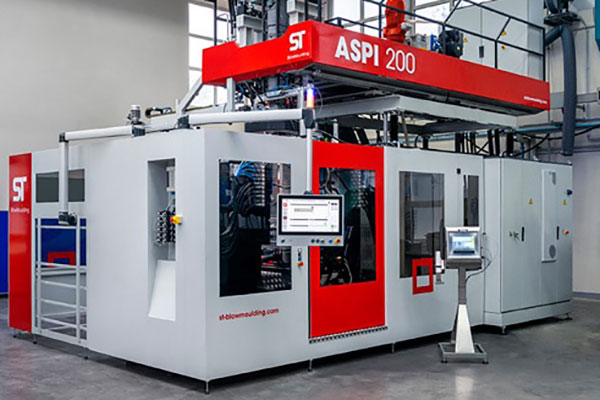

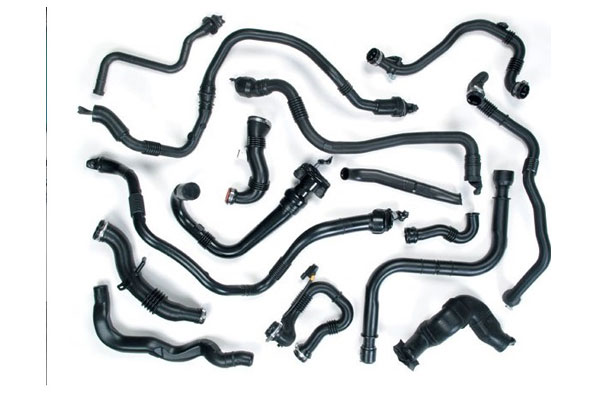

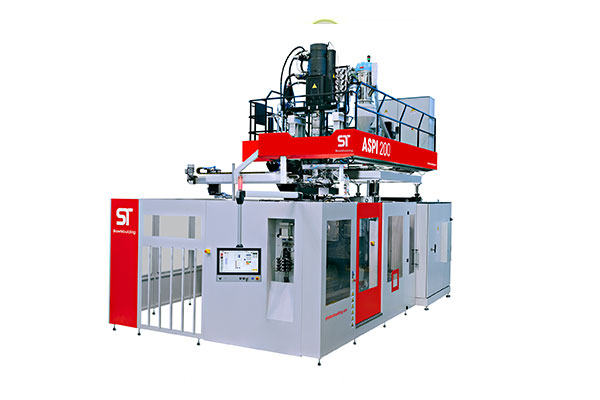

3D Suction Blow Molding - ASPI: ST Blow, manufactures 3D Suction Blow Molding machines that are used for the production of convoluted and tubular pipe shaped parts. Unlike conventional extrusion blow molding machines, ST’s 3D suction blow molding machines consent to produce components of difficult shapes reducing amount of scrap at minimum. Total longitudinal and their patented radial thickness control equipment allows producing complex articles with uniform distribution of material.

Further, thru 3D suction blow molding process, the machine gives wide flexibility in choosing more advance engineering plastics and crystalline materials e.g. crystalline nylon, pps, etc.

Some highlights of ST 3D suction blow machine which surely be of great interest to Lumax :

• 3D Suction Blow – it is globally more demanding and prominent technology duct / tube shape applications.
• Mono layer, SECO as well as Dual Station option.
• Wide flexibility in choosing more advance engineering plastics and crystalline materials e.g. crystalline nylon, pps, etc.
• Higher plasticizing capacity with smaller or same extruder screw size - > higher productivity.
• ST proprietary 4WDS radial wall thickness control system with full 500 control point system and easy mechanical centring.
• Tie-bar less clamping unit. Electrical adjustment extruder platform.
• Parison moves when mold is in close position - > better material temperature control and part surface finish. Parison marking with lubrification system.
• ST machines has lesser energy consumption in the world market.

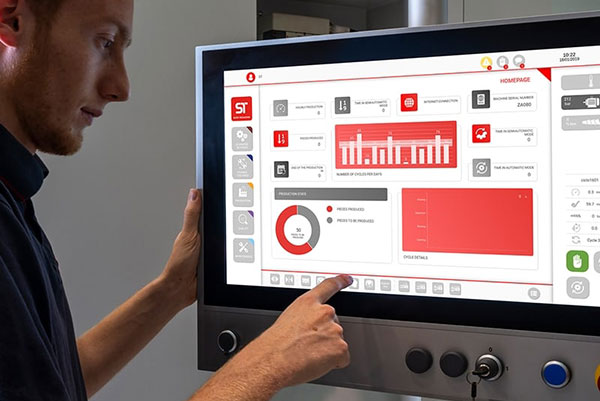

• IOlink device for preventive maintenance, remote access, ST patent/property parts.
