ULAI, is proud to be one of the experienced, reputed and quality performance machinery supplier to rubber and plastic industry. We offer wide range of hydraulic press molding machines, transfer molding, compression molding, injection molding machines with H Type, Pillar Type, C Type frames.
We are client centric firm with an aim to attain highest client satisfaction by delivering them excellent quality range of machines with after sales service back up. ULAI provide support assistance to its clients in choosing and recommending the right machines to meet their spec requirements, developing the application, tool design, process stabilization, machine installation, production training etc. The applications covered could be anything from conventional parts to high tech precision parts.
Rubber Compression Molding, Rubber Vacuum Compression Molding, Rubber Injection Molding, Rubber Hydraulic Press, Rubber Transfer Molding, Liquid Silicone Rubber Molding LSR Molding, Solid Silicone Injection Machine. Our rubber injection machines are highly known for their robust structure, high efficiency, easy of functionality, low maintenance and long life.
We can also offer customized rubber injection molding machine as per spec requirements of tonnage, platen size, injection capacity etc.

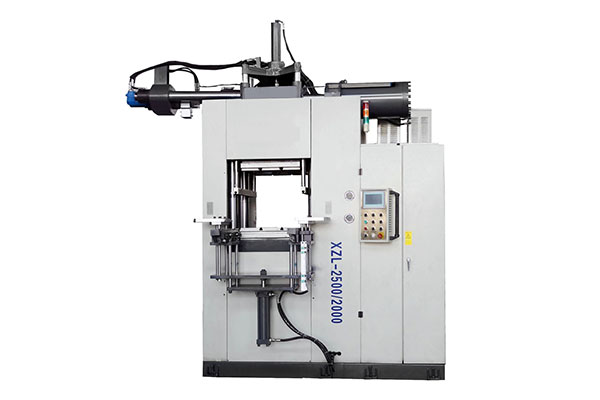

The first-in-first-out rubber injection molding machine adopts a first-plasticized rubber injection system to realize the first-in-first-out mold cavity injection method. It is simple to operate, has high stability and longer life, and provides users with maximum flexibility, great performance and higher productivity. The machine is equipped with a PLC programmable control system, which can divide the injection pressure and flow into three equal stages and provide a three-stage pressure maintaining function to meet the requirements of different product processes. The first-in-first-out injection system provides greater flexibility, allowing the machine to handle a variety of solid rubber, solid silicone rubber products to adapt to different production needs. This design helps improve production efficiency and ensures product consistency and quality during manufacturing.
Description | Unit | FIFO 250 | FIFO400 | FIFO500 | FIFO600 |
---|---|---|---|---|---|
Clamping Force | Ton | 250 | 400 | 500 | 600 |
Injection Capacity | Cc | 2000 | 4000 | 8000 | 10000 |
Heating plate size | Mm | 560*630 | 670*780 | 850*850 | 950*950 |
Clamp Stroke | Mm | 500 | 600 | 700 | 700 |
Min mold height | Mm | 100 | 180 | 200 | 200 |
Motor Power | Kw | 11 | 15 | 18.5 | 22 |
Dimensions | m | 2.8*2.6*3.4 | 3.2*3.0*4.0 | 3.7*3.2*5.0 | 4.2*3.5*5.5 |
Description | Unit | UTH 100 | UTH210 | UTH330 | UTH440 | UTH550 | UTH660 |
---|---|---|---|---|---|---|---|
Clamping Force | Ton | 100 | 210 | 330 | 440 | 550 | 660 |
Injection Capacity | Cc | 1000 | 2000 | 3000 | 5000 | 8000 | 10000 |
Heating plate size | Mm | 450*450 | 550*550 | 650*650 | 750*750 | 850*850 | 950*950 |
Clamp Stroke | Mm | 450 | 500 | 550 | 600 | 700 | 760 |
Min mold height | Mm | 50 | 50 | 50 | 50 | 100 | 100 |
Motor Power | Kw | 18 | 26 | 36 | 39 | 45 | 50 |
Dimensions | m | 2.9*2.0*2.2 | 3.1*2.3*2.5 | 3.4*2.6*2.7 | 3.8*3.0*3.0 | 4.2*3.5*3.5 | 4.5*4.0*4.0 |
