ULAI, is proud to be one of the experienced, reputed and quality performance machinery supplier to rubber and plastic industry.
We are client centric firm with an aim to attain highest client satisfaction by delivering them excellent quality range of machines with after sales service back up. ULAI provide support assistance to its clients in choosing and recommending the right machines to meet their spec requirements, developing the application, tool design, process stabilization, machine installation, production training etc. The applications covered could be anything from conventional parts to high tech precision parts.

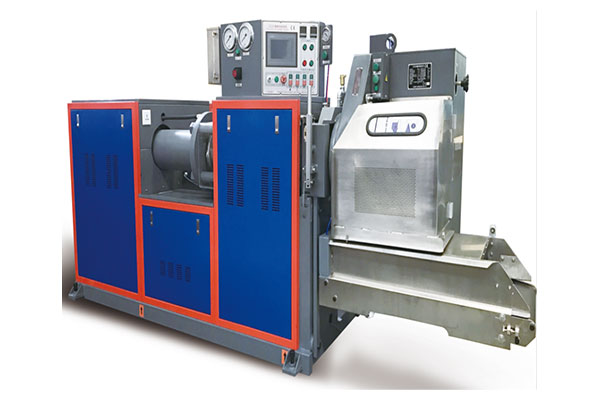

Rubber Precision performer is a highly efficient, high precision rubber blanks or rubber preforms preparation equipment. Rubber performer are used in wide field of rubber industry, it can cut from medium to high shore hardness of rubber preforms in desired shape and exact weight. The rubber preforms machine are suitable for production of various kinds of rubber parts viz. oil seals, valves, stoppers, tennis balls, O rings, sheets, soles etc.
Basic principal performance are mainly compose of vacuum, filtration, extrusion, cut, weigh, adopts humanized design, easy and safe operation.
Key Highlights:
| Model | JYZ-150 | JYZ-200 | JYZ-250 |
JYZ-250+ |
| Barrel diameter | 150 mm | 200 mm | 250 mm | 250MM |
| Total power | 15kw | 15 kw | 22kw | 26 kw |
| Max.oil cylinder pressure | 36.8 Mpa | 21 Mpa | 20.7 Mpa | 20.7 Mpa |
| Max.barrel temperature | 95℃ | 95℃ | 95℃ | 95℃ |
| Max. die diameter | 80 mm | 125 mm | 190 mm | 190 mm |
| Rubber bland weight range | 0.3～100 g | 0.3～200g | 0.3～2000g | 0.3～2000g |
| Rubber blank weight precision | ±1.0﹪ | ±1.0﹪ | ±1.0﹪ | ±1.0﹪ |
| Feed capacity per batch | 10～15 kg | 20～25 kg | 60～70 kg | 100~110 kg |
| Blade rotation speed | 35～400 R/M | 35～400 r∕min | 35～400 r∕min | 35～400 r∕min |
| Dimension（L×W×H:m） | 4.1×1.21×1.73 | 4.1×1.21×1.73 | 5.3×1.21×1.73 | 6.5x1.21x1.73 |
| Weight | 2.8 T | 3 T | 4T | 5T |

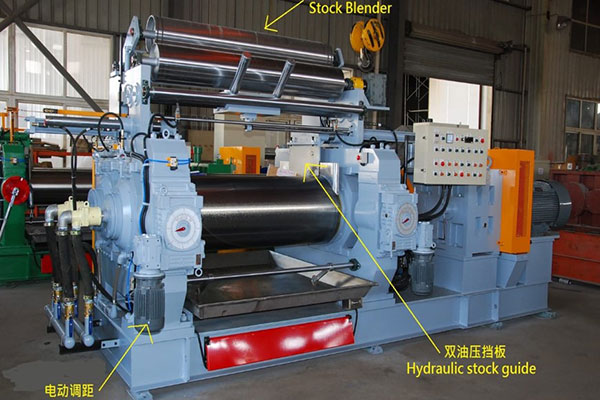

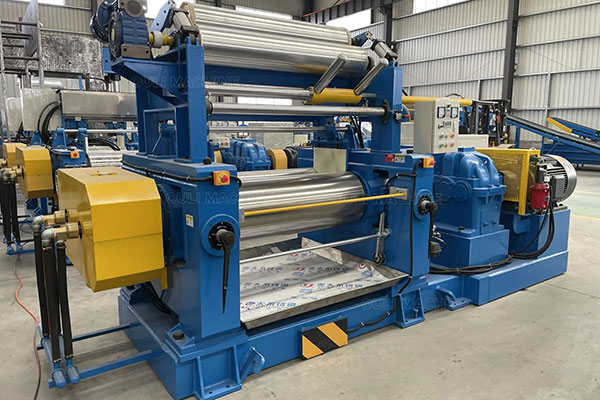

Rubber Mixing Mills with stock blenders, for ensuring proper mixing and dispersion of rubber compounds. Apart from quicker batch timing, it also helps cooling the batch. While in operation, it mixing the compounds faster and better, thus reduces operator fatigue. With a skilled operated, the same operator can operate two machines.
Also its proved, that a machine with stock blender offers better dispersion quality when compared to one without a stock blender. We offer hydraulic and mechanical type Stock Blenders to the clients, as per their specific demands. Our mixing mills are equipped with a specially designed stock blender which helps in uniformly mixing the rubber material and chemical ingredients. It reduces the cycle time & operator fatigue, as he has not to do any cutting or folding job on the mill. It lowers the material temperature and improves the shelf life of the compound. The speed of the stock blender can be changed to get consistent quality of compound.
Manufacturers of Rubber Mixing Mill with Stock Blender Mumbai India.
Stock blenders either hydraulic or mechanical type are provided on mixing mills ranging from size 14”x36” to 26”x84”
Other highlights:
| Model | 150 | 250 | 300 | 360 | 400 | 450 | 560 | 610 | 660 | 710 |
| Roll diameter (mm) | 160 | 250 | 300 | 360 | 400 | 450 | 560/510 | 610 | 660 | 710 |
| Roll working length (mm) | 320 | 620 | 750 | 900 | 1000 | 1200 | 1530 | 2000 | 2130 | 2200 |
| Capacity (kg/batch) | 4 | 15 | 20 | 30 | 40 | 55 | 90 | 120-150 | 165 | 150-200 |
| Front roll speed (m/min) | 10 | 17 | 15.8 | 16.3 | 18.8 | 21.1 | 25.8 | 28.4 | 29.8 | 31.9 |
| Roll speed ratio | 1:1.21 | 1:1.08 | 1:1.17 | 1:1.22 | 1:1.17 | 1:1.17 | 1:1.17 | 1:1.18 | 1:1.09 | 1:1.15 |
| Motor power (Kw) | 7.5 | 18.5 | 22 | 37 | 45 | 55 | 90/110 | 160 | 250 | 285 |
| Size (mm) L | 1104 | 3230 | 4000 | 4140 | 4576 | 5035 | 7100 | 7240 | 7300 | 8246 |
| (mm) W | 678 | 1166 | 1600 | 1574 | 1755 | 1808 | 2438 | 3872 | 3900 | 4556 |
| (mm) H | 1258 | 1590 | 1800 | 1800 | 1810 | 1835 | 1600 | 1840 | 1840 | 2270 |
| Weight (kg) | 1000 | 3160 | 5000 | 6890 | 8000 | 12000 | 20000 | 44000 | 47000 | 51000 |
