Hydraulic Rubber Compression Molding Machines

ULAI, is proud to be one of the experienced, reputed and quality performance machinery supplier to rubber and plastic industry. We offer wide range of hydraulic press molding machines, transfer molding, compression molding, injection molding machines with H Type, Pillar Type, C Type frames.

We are client centric firm with an aim to attain highest client satisfaction by delivering them excellent quality range of machines with after sales service back up. ULAI provide support assistance to its clients in choosing and recommending the right machines to meet client’s spec requirements, assistance in application development, tool design support, process stabilization, machine installation, training etc. The applications covered could be anything from conventional parts to high tech rubber, plastic parts.

Our rubber compression, injection machines are highly known for their robust structure, high efficiency, easy of functionality, low maintenance and long life.

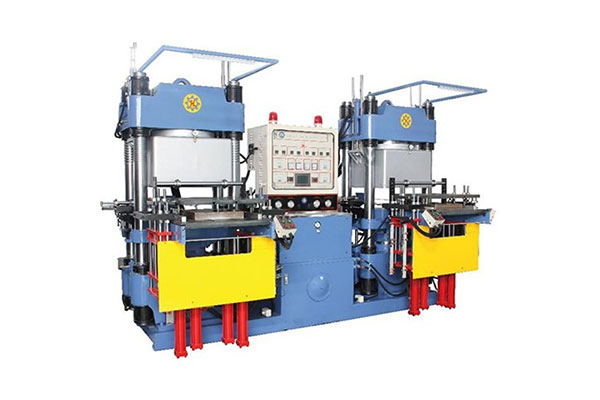

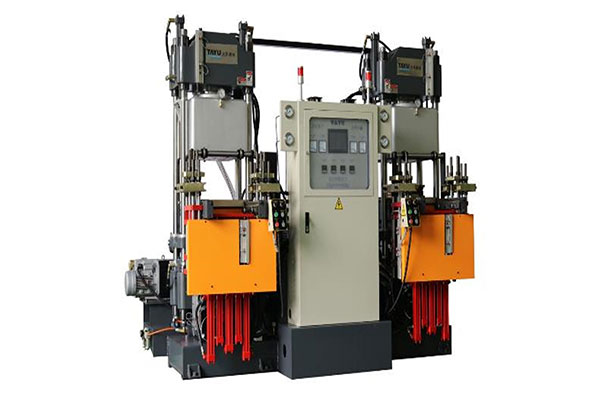

Rubber Vacuum Compression Molding Machine

Rubber Vacuum compression molding machines are used for molding rubber, silicone as well as composite materials. The machine models can be offered in different tonnage capacity, single to multiple stations with one or more than one mold ejector (RT) device. Vacuum compression molding machines are more ideal and preferred choice for rubber molding where the compression takes place in closed vacuum chamber connected with pump, motors etc. Vacuum compression molding machine helps in reducing the heat loss, enhance molding quality with better part surface finish and increase productivity. These machines are connected thru PLC control and HMI.

Key Highlights:

  • Station - Single, Double
  • Mold Ejector device - Top and bottom core lifter, 2RT, 3RT, 4RT, 5RT.
  • Control operation - PLC Controlled with push bottom.
Description Unit UVC100 UVC160 UVC200 UVC250 UVC300 UVC350 UVC400
Clamping Force Ton 100 160 200 250 300 350 400
Heating Platen Size mm 450*450 500*500 550*550 600*600 650*650 700*700 750*750
Heating Power Kw 9*2 13.5*2 14.4*2 15.3*2 20.4*2 21.6*2 22.8*2
Oil pump Motor Kw 4*2 4*2 7.5*2 7.5*2 7.5*2 7.5*2 7.5*2
Total Power Kw 29 38 47 49 59 62 64
Weight Ton 7 8.5 9.5 11.7 13.5 16 22
Dimensions m 3.1*2.05*2.25 3.25*2.2*2.3 3.6*2.35*2.45 3.75*2.5*2.5 3.9*2.65*2.55 4.05*2.8*2.65 4.2*3*2.7
Dimensions s 5 3 5 5 5 5 7

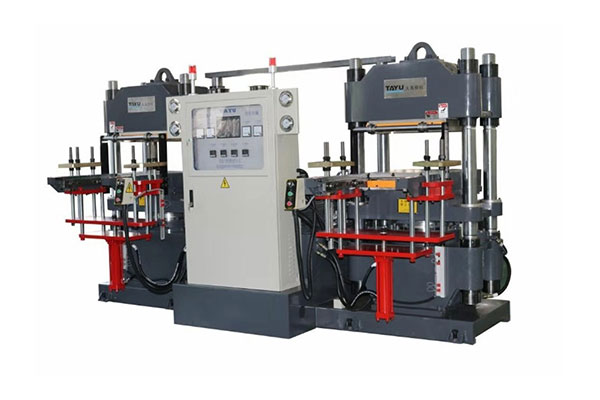

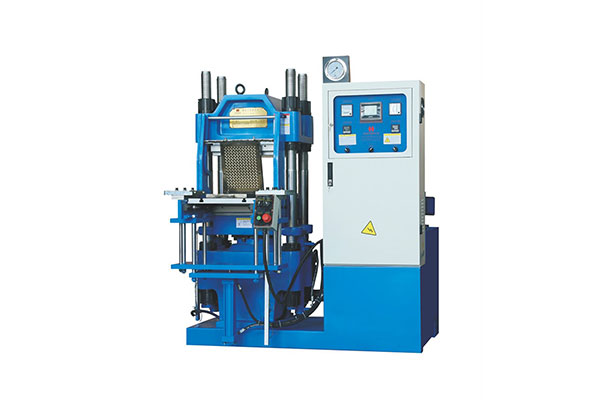

Rubber Compression (Non-Vacuum) Molding

Key Highlights:

  • Station - Single, Double
  • Mold Ejector device - Top and bottom core lifter, 2RT, 3RT, 4RT, 5RT.
  • Control operation: PLC Controlled with push bottom.
Description Unit UC100 UC160 UC200 UC250 UC300 UC350 UC400
Clamping Force Ton 100 160 200 250 300 350 400
Heating Platen Size mm 450*450 500*500 550*550 600*600 650*650 700*700 750*750
Heating Power Kw 9*2 13.5*2 14.4*2 15.3*2 20.4*2 21.6*2 22.8*2
Oil pump Motor Kw 4*2 4*2 7.5*2 7.5*2 7.5*2 7.5*2 7.5*2
Total Power Kw 26 35 44 46 56 59 61
Weight Ton 5 6 7 9 11 13 15
Dimensions m 2.8*2.05*1.75 2.95*2.2*1.8 3.3*2.35*1.9 3.45*2.5*1.95 3.6*2.65*2.0 3.75*2.8*2.15 3.9*2.9*2.2
