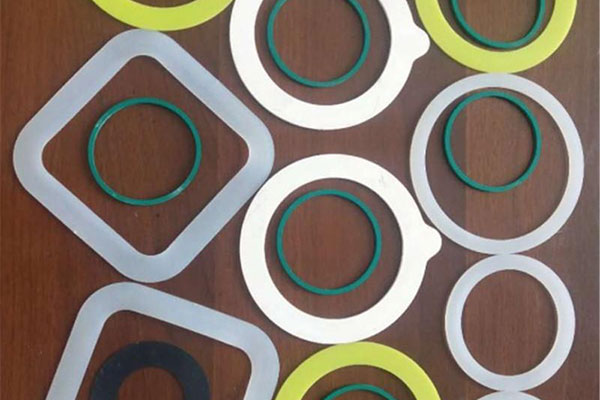

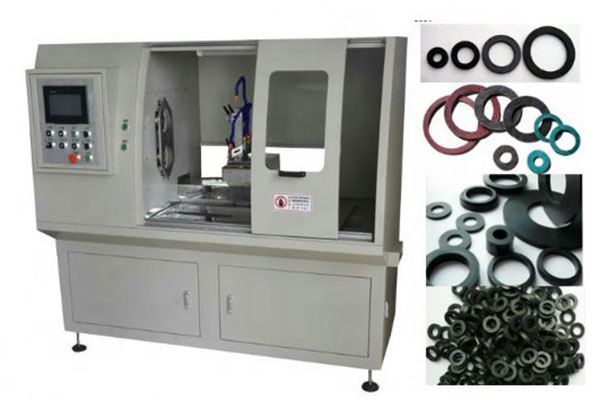

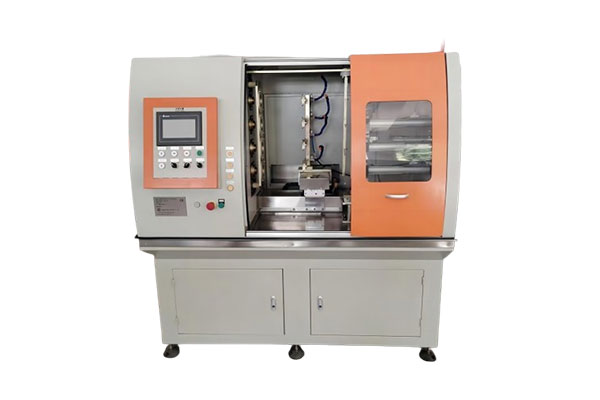

Rubber O Ring Cutting Machine is used for cutting all kinds of tubular products (rubber and silicone etc) to gasket, ring. The LCD touch screen PLC control all cutting parameters, operation is extremely simple. Machine structure is adopted mechanical action, all electrical components, pneumatic components are famous brand.

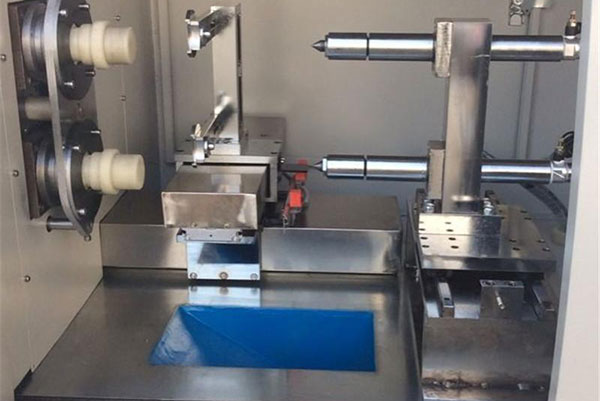

Our Rubber Washer/Gasket Cutting Machine adopts vacuum pump, realizing powerful vacuum absorption of the pipe/tube, so ensuring the finished cut product more precise.
Automatic air blowing function makes loading and unloading more convenient, greatly improving the working efficiency.
The Rubber Washer/Gasket Cutter Machine adopts PLC+HMI touch screen control, cutting parameters are set up from the HMI,cutting recipes are aumatically stored,convenient to call, making the operation very easy.
| S. No. | Description | Remarks |
|---|---|---|
| GASKET CUTTING MACHINE | ||
| 1 | External Dimension (mm) (L*W*H) | 1600×980×1650 |
| 2 | Weight of the unit | 500Kg approx. |
| 3 | Power Supply | AC 220V +-5%, 50 Hz, 3Ph |
| 4 | Gross Power | About 2.5 KW |
| 5 | Compressed Air Consumption | 20L/min |
| 6 | Atmospheric Pressure | 0.5MPa – 0.8Mpa |
| 7 | Working Vacuum Degree | ≤ -0.035 MPa |
| CUTTING PARAMETERS | ||
| 1 | Cutting Efficiency | ≤ 60 cuts/min/spindle |
| 2 | Working Rotation Speed | 0-3000 r/min |
| 3 | Cutting Precision | ≤ ± 0.05mm |
| 4 | Cutting Diameter | Φ10mm - Φ250mm |
| 5 | Cutting Length Stretched | ≤ 350mm |
| 6 | Cutting Thickness | ≤ 12mm |
| CUTTER SPECIFICATIONS | ||
| 1 | Cutting Blade (round) | Φ60 × Φ25.4 × Φ0.35mm |
| 2 | Strip Knife | 65 × 7 × 0.3mm |
| 3 | Cutters Blade Material | Special Carbide Blade |
| TOOL EQUIPMENT SPECIFICATION | ||
| 1 | Convertor / Invertor | DELTA – Taiwan |
| 2 | PLC | DELTA – Taiwan |
| 3 | Servo Motor | DELTA – Taiwan |
